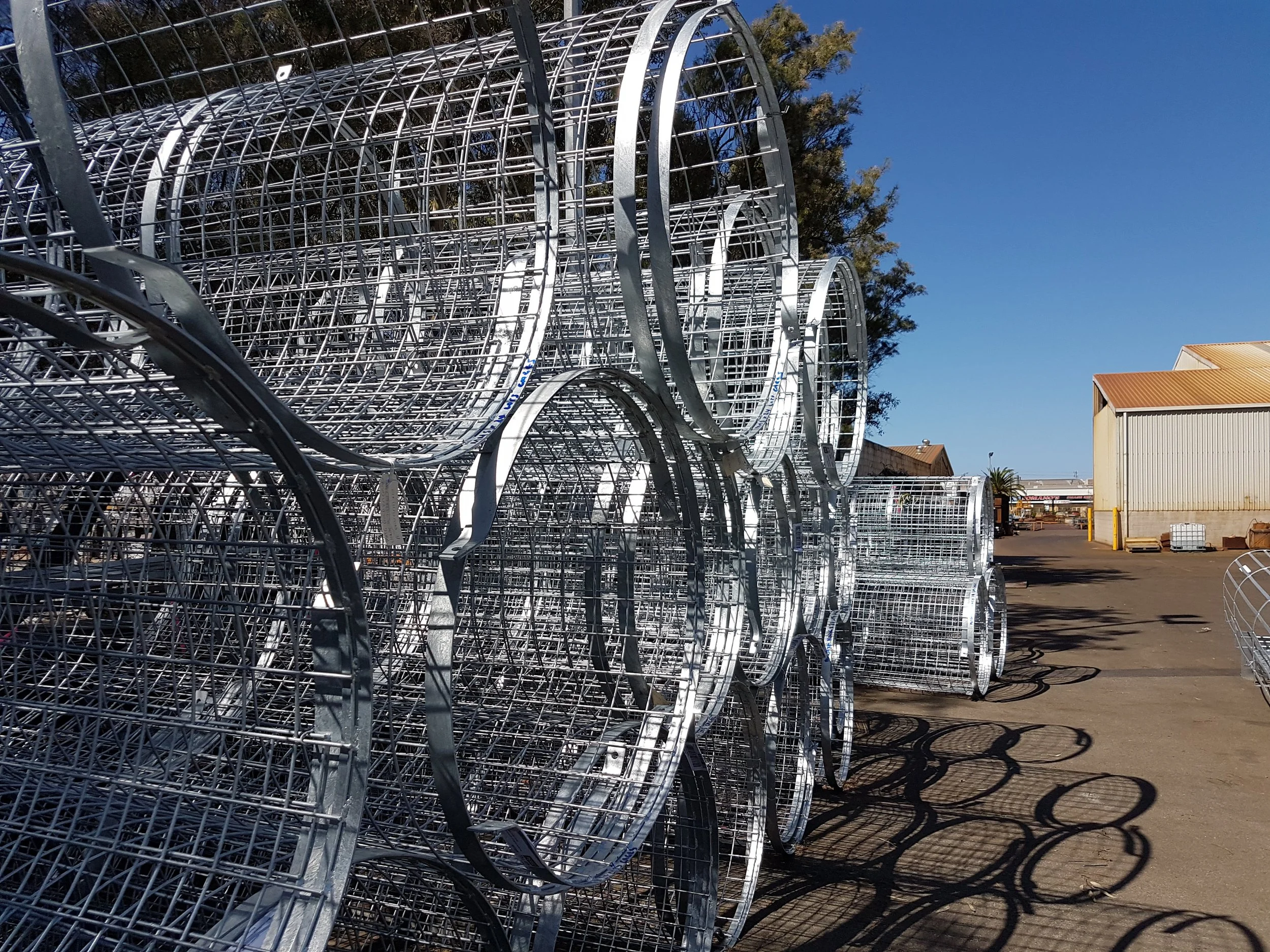

Large metal wire mesh cylinders stacked outdoors in an industrial area, with buildings and trees in the background.

Escapeways

    • Available in 950mm or 1200mm diameters.

    • Fits within a 1.1m raise bore up to 80m long and provides for the ultimate in user safety.

    • Engineered 6mm steel design allows for back filling, ideal for installs where ground squeezing is expected.

    • Fully galvanised, not impacted by water, salt or other mineral deposits.

    • Represents great value for money for underground mines where a permanent life of mine escapeway is required.

    • Murchison Mining Services can offer a complete install service for these steel escapeway modules.

    • Up to 200m long.

    • Engineered design.

    • Fully galvanised.

    • Supplied with all bolts and ladder fixings for install.

    • Supply only or supply and install.

    • Up to 100m long.

    • 3m or 2.4m Modules.

    • Engineered design.

    • Fully galvanised.

    • Supplied with all bolts and ladder fixings for install.

    • Supply only or supply and install.

Large yellow industrial door with a small window in an underground mine.

Vent doors

    • Engineered for 5KPa Ultimate Differential Air Pressure.

    • Fully automatic or manual activation.

    • Dual Airlock or Single Door configurations.

    • Able to Incorporate Air Control Louvres or DBR’s.

    • Engineered for 5KPa Ultimate Differential Air Pressure.

    • Fully automatic or manual activation.

    • Dual Airlock or Single Door configurations.

    • Able to Incorporate Air Control Louvres or DBR’s.

    • Engineered for 5KPa Ultimate Differential Air Pressure.

    • Fully automatic or manual activation.

    • Dual Airlock or Single Door configurations.

    • Able to Incorporate Air Control Louvres or DBR’s.

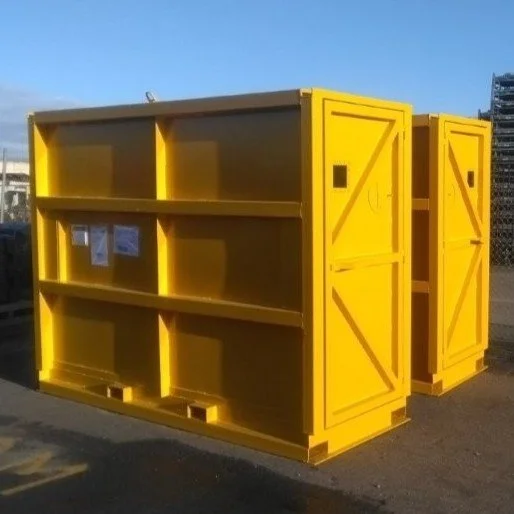

Two large yellow airlock doors, outside, ready for installation.

personnel Access Doors

    • Heavy Duty Design

    • Avaiable in Full Height or Half Height.

    • Heavy Duty Design.

    • Sliding or Hinged Doors.

    • Heavy Duty Design.

    • Sliding or Hinged Doors.
